28N

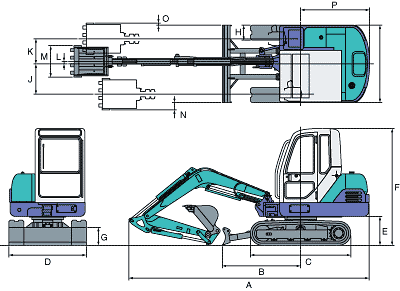

Dimensions(unit: mm)
| A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|
| 4170 | 1470 | 1895 | 0550 | 560 | 2320 | 365 | 300 |
| I | J | K | L | M | N | O | P |
| 1550 | 560 | 460 | 50 | 500 | 50 | -60 | 1280 |

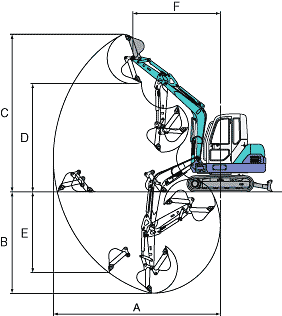

Working range(unit: mm)
| A : Maximum digging radius | 4310 |
|---|---|
| B : Maximum digging depth | 2520 |
| C : Maximum digging height | 4560(4050) |
| D : Maximum dumping height | 3200(2840) |
| E : Maximum vertical digging depth | 1950 |
| F : Minimum front turning radius At right boom swing |
1500(1800) 1175(1260) |
Specifications
| Performance | STD. Bucket capacity(ISO) | 0.08m3 | 2.8ft3 |
|---|---|---|---|
| STD. Bucket width | 500mm | 19.7" | |
| Operating weight | 2500kg | 5511Ibs | |
| Machine weight | 1920kg | 4233Ibs | |
| Swing speed | 10min-1 | 10rpm | |
| Travel speed(Low/High) | 2.3/4.5km/h | 1.5/2.8mph | |
| Gradeability | 30° | ||
| Ground pressure | 26.5kPa | 3.8psi | |
| Max. bucket digging force | 19.6kN | 4406Ibs | |
| Engine | Model | ISUZU 3LD1 | |
| Rated output | 15.7KW(21.3PS)/2220min-1 | 21.1HP/2220rpm | |
| Fuel tank capacity | 37L | 9.8gal | |
| Boom swing system | Type | Boom offset with hydraulic cylinder | |
| Swing angle(L/R) | 50°/90° | ||
| Hydraulic System | Pressure | 20.6MPa | 2988psi |
| Pump hydraulic flow | 28.9L/min×2+19.1L/min | 7.6gpmx2+5.0gpm | |
| Dozer blade | Size(Width × Height) | 1550mm×365mm | 61.0"×14.4" |
| Lift above/Drop below ground | 370mm/390mm | 14.6"/15.4" | |
Options
| Loading bucket capacity/width(ISO) | 0.10m3 /600m 0.09m3 /550mm |
3.5ft3 /23.6" 3.2ft3 /21.7" |
|---|---|---|
| Digging bucket capacity/width(ISO) | *0.04m3 /250mm *0.05m3 /320mm 0.07m3 /450mm |
*1.4ft3 /9.8" *1.8ft3 /12.6" 2.5ft3 /17.7" |
| Long arm STD.bucket capacity/width(ISO) | 0.06m3 /400mm | 2.1ft3 / 15.7" |
| Reinforced bucket capacity/width(ISO) | 0.08m3 /500mm | 2.8ft3 /19.7" |
| Slope Finishing bucket | - | |
| Steel shoe width(incl.rubber pad attachment holes) | 300mm | 11.8" |
| Long arm length | STD+300mm | STD+11.8" |
| TOPS Canopy | O(Standard) | |
| Steel cab | O | |
| Canopy | O | |
| Air conditioner | O | |
| Power port/Auxiliary hydraulic flow(Theoretical) | 48L/min | 12.7gpm |
