70Z

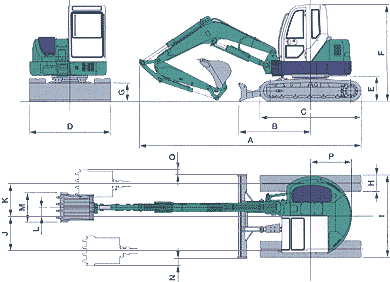

Dimensions(unit: mm)
| A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|
| 5990 | 1920 | 2725 | 2200 | 680 | 2580 | 500 | 450 |
| I | J | K | L | M | N | O | P |
| 2200 | 1310 | 1240 | 230 | 760 | 210 | 140 | R1100 |

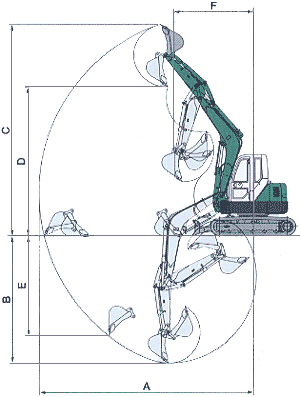

Working range(unit: mm)
| A : Maximum digging radius | 6810 |
|---|---|
| B : Maximum digging depth | 4200 |
| C : Maximum digging height | 6800 |
| D : Maximum dumping height | 4800 |
| E : Maximum vertical digging depth | 3300 |
| F : Minimum front turning radius At right boom swing |
2400 2100 |
Specifications
| Performance | STD. Bucket capacity(ISO) | 0.25m3 |
|---|---|---|
| STD. Bucket width | 760mm | |
| Operating weight | 7600kg | |
| Machine weight | 6060kg | |
| Swing speed | 9.2min-1 | |
| Travel speed(Low/High) | 2.6/4.3km/h | |
| Gradeability | 58%(30°) | |
| Ground pressure | 36kPa | |
| Max. bucket digging force | 53kN (5400kgf) | |
| Engine | Model | ISUZU AA-4JG1 |
| Rated output | 42kW/2100min-1 (57.1PS/2100min-1) |
|
| Fuel tank capacity | 70L | |
| Boom swing system | Type | Boom offset with hydraulic cylinder |
| Swing angle(L/R) | 90°/50° | |
| Hydraulic System | Pressure | 24.5MPa(250kgf/cm2)×2 +21.6MPa(220kgf/cm2) |
| Pump hydraulic flow | 71.4L/min×2+53.1L/min | |
| Dozer blade | Size(Width × Height) | 2200mm×500mm |
| Lift above/Drop below ground | 435mm/420mm |
Options
| Loading bucket capacity/width(ISO) | 0.11m3/450mm 0.16m3/550mm 0.21m3/650mm 0.28m3/760mm |
|---|---|
| Loading bucket capacity/width(ISO) | O |
| Steel shoe width | 450mm |
| Rubber padded crawler(400mm width) | O |
| Long Arm | Standard+300mm |
| Steel cabin | J Type or NX Type |
| Airconditioner | O |
| Power port/Auxiliary hydraulic flow | O(71.4L/min) |
| Double-element filter | O |
●Photographs appearing in the catalog were taken for publication and may differ in some cases from actual objects. Specifications are subject to change without notice due to technical improvements or modifications.
