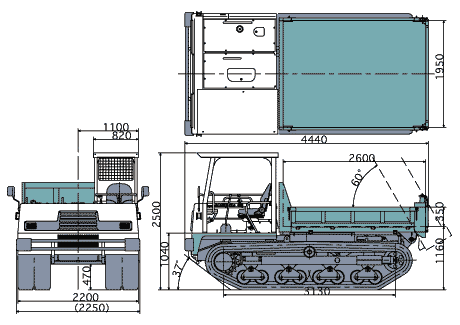

Dimensions(unit: mm)


Payload 4000kg 8,818 lbs
Operating weigt 5800kg 12,787 lbs
Travel speed Low 7/12km/h 4.3/7.5 mph
High 7/12km/h  4.3/7.5 mph
Gradeability 30°
 Side stability 45°
Machine dimensions Total length 4440mm 174.8"
Total width 2250mm 88.6"
Total weight 2500mm 98.5"
Engine Model Mitsubishi 4D34-TE1
Rated output 84.6kW(115PS)/2800min-1 113.6 HP/2800min-1
Cycles-displacement 4-3907cc
lgnition method Fuel injection turbo diesel
Fuel tank capacity 120L 31.7 gal
Crawler Between tumbler centers 3130mm 123.2"
Crawler span  2200mm  86.6"
Crawler width 600mm  23.6"
Minimum ground clearance 470mm 18.5"
 Ground pressure Empty  0.15kgf/cm2  2.1psi
Loaded 0.26kgf/cm2 3.7psi
Vessel capacity Heaped 3.0m3 3.7 yd3
Stuck 1.8m3 2.4 yd3
Vessel dimensions Length 2600mm  102.4"
Width 1950mm  76.8"
 Height 350mm  13.8"
Vessel  Height from ground 1160mm 45.7"
 Maximum dumping angle 60°
 Dump clearance 820mm  32.3"
 Travel drive system HST
Transmission system 2 speed travel motor
 Brake system HST brake + parking brake
 HST set pressure 350kgf/cm2 4,978 psi

●Photographs appearing in the catalog were taken for publication and may differ in some cases from actual objects. Specifications are subject to change without notice due to technical improvements or modifications.
