Top > Product Line Up > Cityrange Cranes >CR-200Rf
CR
Cityrange Cranes

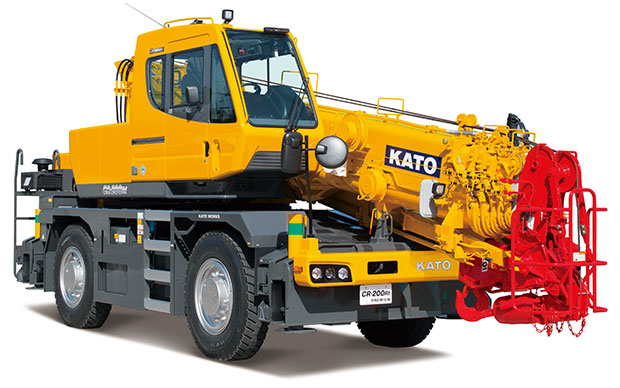

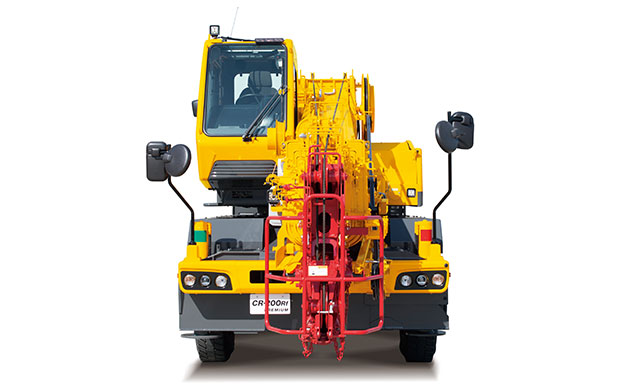

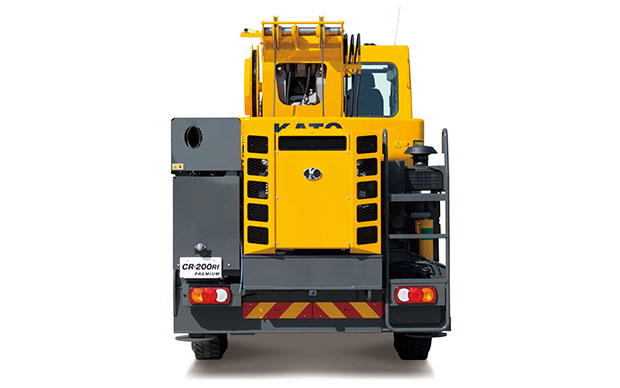

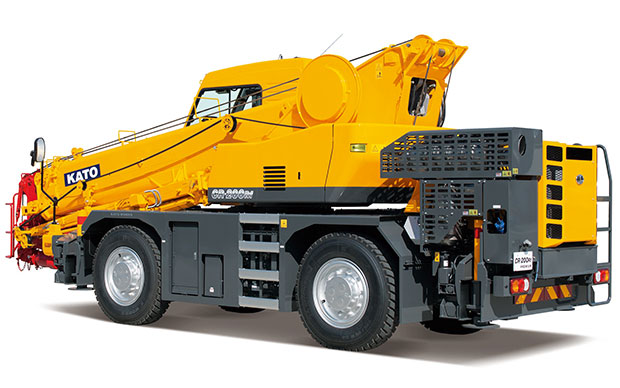

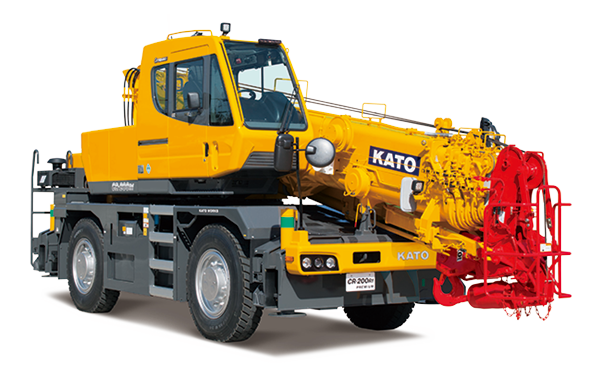

CR-200Rf

CR-200Rf

General Specifications

  • General Dimensions
    (L x W x H)

    8,710 x 2,290 x 3,245mm
  • Gross Vehicle Weight
    19,755kg
  • Maximum Lifting Capacity
    20t x 2.5m
  • Boom length / sections
    6.5 - 28m
    6 sections
  • Searcher Hook length /
    offset angles

    1.0m
    2 positions (high / low)
  • Jib length / sections / offset angles
    4.0 - 5.8m
    2 sections
    7 ° - 60°
  • Outrigger width
    1,930 - 5,400mm
