CITYRANGE CRANES

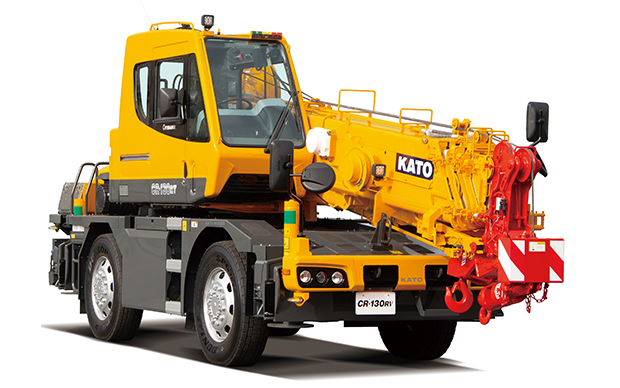

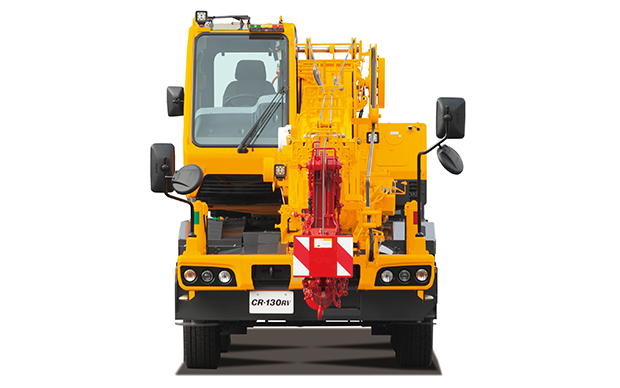

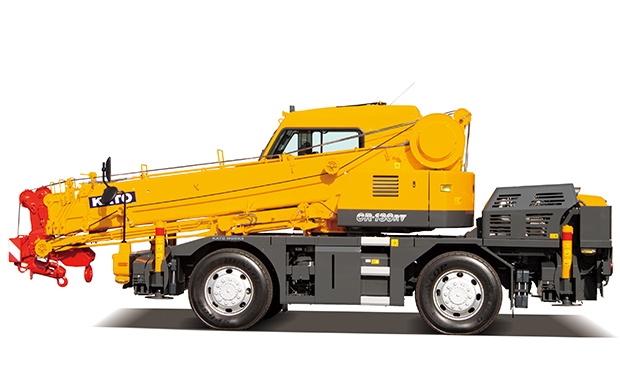

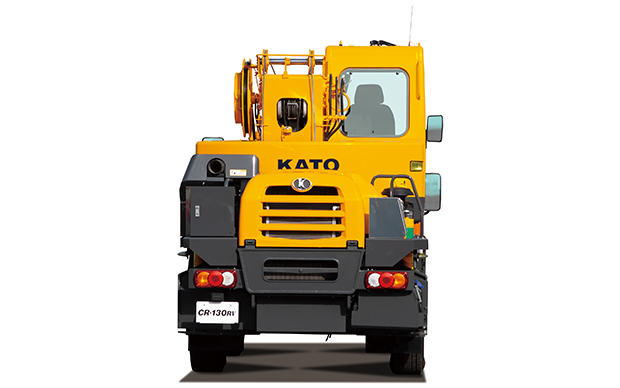

CR-130RV

GENERAL SPECIFICATIONS

General Dimensions(L x W x H)
7,465 x 1,995 x 2,870mm
Gross Vehicle Weight
13,825kg
Maximum Lifting Capacity
13t x 1.7m
Boom length / sections
5.3 - 24.0m
6 sections
Searcher Hook length /
offset angles
0.8m
2 positions (high / low)
Jib length / sections / offset angles
3.6m , 5.5m
2 sections
5° - 60°
Outrigger width
1,640 - 4,750mm
